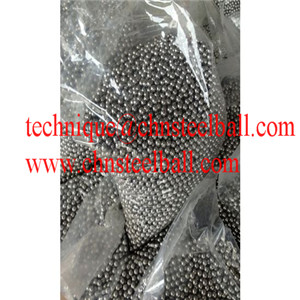

供应日本SUS420材质1.0mm不锈钢球
产品标签： 不锈钢球 钢球 1.0mm不锈钢球
订货量（个） 价格
30000 - 499999 0.04元/ 个
≥500000 0.04元/ 个
发 货 期：5天内发货
所 在 地：广东 中山
手 机：15913496591
详细信息
品牌： HRT 型号： SUS420
加工定制： 是 是否标准件： 标准件
样品或现货： 现货 是否进口： 非进口
类型： 钢球 用途： 轴承、电气、设备、仪器、仪表
材质： 不锈钢 尺寸： 1.0mm
AISI(SUS)420C化学成分
C 0.30-0.50
Si 1.00MAX
Mn 1.00MAX
P 0.040MAX
S 0.030MAX
Cr 12.50-14.50
抗拉强度 280,000 psi
屈服强度 270,000 psi
弹性模量 29,000,000 psi
密度 0.275 lbs/cubic inch
供应生产媲美日本SUS420材质1.0mm不锈钢球
1) 材料：不锈钢SUS420;
2) 直径:1.0mm;
3) 级别:G10，G16；
4) 证书:ISO-9001,TS-16949,ISO14001;
5) 硬度:≧ HRC 52.
6)特性：具有一定耐磨性及抗腐蚀性，硬度较高，其价格是不锈钢球中较低的一类,适用于对不锈钢普通要求的工作环境中。
7)应用：适用于各类精密机械、轴承、电气、设备、仪器、仪表、交通运输工具、家用电器等。多用于制造耐大气、水蒸气、水及氧化性酸腐蚀的零部件。
Ball Diameter
balls（kg）
kgs per 1000 pcs
No.of balls per kg
type of bearings to which the ball is applied
时
inch
毫米
mm
-
0.8000
2.00209
478470
1000082,100009/1.5,106009/1.5
-
1.0000
0.00408
245100
100008/2.5,1000083,2000083,1000092,95
(45)1060092,8001/1.5,770083
-
1.2000
0.00705
141840
96,906072,906092
-
1.3000
0.00893
111980
100084,2000084,1000093,62,106009/2.5,1060093,
80013,8060023,60073.
1820093,1830093,2106083,2006083,1080093,906093,3836093.
-
1.4500
0.0124
80645
1060084
1/16
1.5875
0.016
62350
23,53,1000085,970092(970052),970093(970053),
970095(970055)640063
740063,136023,6023,906073,2830085,1080085
-
1.7500
0.0218
45871
1060085,1830085
-
2.0000
0.0326
30700
1000086,1000087,1000088,1000801,2000086,
1000094,1000095,7000807,55.
430078(2-002),640095,78075,1060089,106094,
1060095,1210801,7060015.
80014,380075,2830086,1106094,1006095,1006094,516053.
3/32
2.3812
0.055
18182
24,1000089,1000096,1380096,1380096,8060026,
8060034,8060035,6024,106096.
1006096,3106095,606016,7008903,906076,1830096,900803.
-
2.5000
0.0637
15698
2060088
-
3.0000
0.110
9091
1000097,1820097.
1/8
3.1750
0.131
7634
25,16,34,1000098,1000099,1000806,1000807,1000808,
900903,900904.1000902,900805,970700,900706,900808,
900809,900810,1026,1027,
971077(971067),981075(981065),981077(981067),6073(6003).
980075(980055),980065,980077,6025,106034(76004),1080099,
60074(60064),80075,500066,526055,1008098,106025,22706k(706),
900907,900912,1740808,640075(640065),501065,1018,1035
-
3.5000
0.175
5717
1380099,1000810,7900812
5/32
3.9688
0.255
3922
17,18,19,35,26,27,28,56,66,86,89,1000900,1000901,1000903,780065
520026,530018k,530018k1,3180018,180027,7900813,980079,
980085,1029,981028,981077,(981067),7426815k(7130815).6017,6018,
6026,106018,136026,36017,36018,506057,536057,1008096,
796906(836906),796905(636905),796904(2-605),796705(2-606).
3/16
4.7625
0.441
2268
29,10009048,7000101,7000102,100,101,102,
102,200,901,690079(690069)
280701,(80701),80801，980811k，180102，
980087（980067), 80907)980906)，981078(981068),
6027,6102,6078(6008), 800620(6012),6076(6006),106028,
36019,36027,36028,36029,36100,36102,46100,46101,256500,
7426815(7710815),1200,1201,8100,8101,8102,8103.
-
5.0000
0.510
1961
1000904,1000905,1000906,540822,7000910,700,
15/46
5.9531
0.860
1163
200,201,202,80902,180700,60902,6200,6202,
26202,776901,406900(2-610),
36200,46200,36202,46202,15604(2-601),3056202k.
1/4
6.3500
1.04
962
104,300,105,1000908,7000106,7000107,8107,
7000108,7000109,980704,
980705, 709,8203,704(100704),330078,
330088,1204,1301,1302,
1503,6104, 6703(6017), 1036909,688808(688908),
3056203,776701(676701), 7426824(7936824)98906(98206)
17/64
6.7469
1.25
800
203,301
9/32
7.1438
1.49
671
203,106,300,7000110,7000111,8108,700112,
7000113,20703,710,970705,8109,
970711,180205,180504,1205,1303,8110,1304,1504,
1505,1600,1601,8204,1602,1970819,
6203,26203,36203,198905k(108905),46203,3056204,
3056205,3756205,1136820,
688708,606925(3-615),106930(3-616).
5/16
7.9375
2.04
490
204,205,301,302,107,708925,108,7000114,
970205,940705,8000205(705),80905,
980700,530202(30804),180506,8205,1740817,
1206,1207,1506,1603,8206,6204,
6704(6020),26204,26205,116205,36204,46204,36205,
46205,3056304,
3086304,986711,688911,588911,776801.
3/8
9.5250
3.52
284
206,303,304,1000916,1000917,8116,905,20803,530206,
520806,140806,8117,1970826,
520206,1209,1210,1306,8207,1507,1508,1509,1510,
26704,8305,26704k(326704),
36206,688713(9688213),8113,8114,8115
